Description

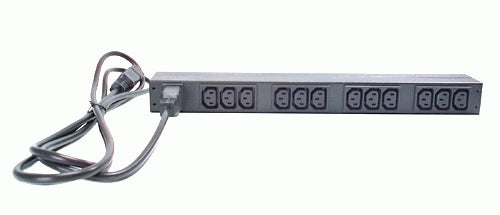

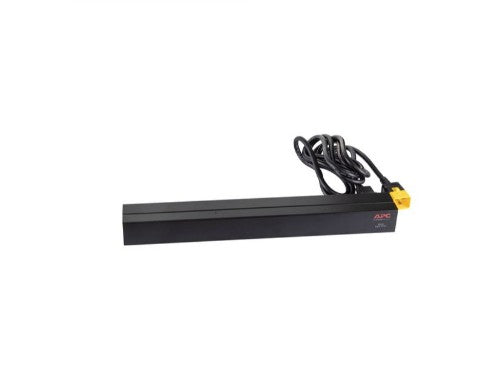

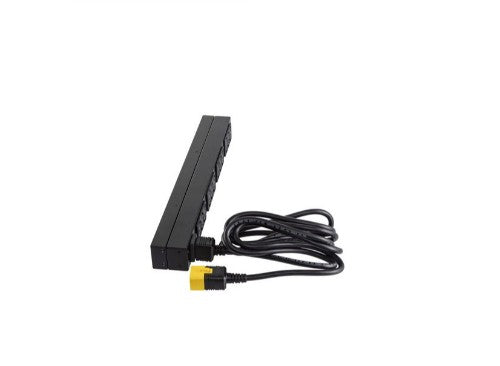

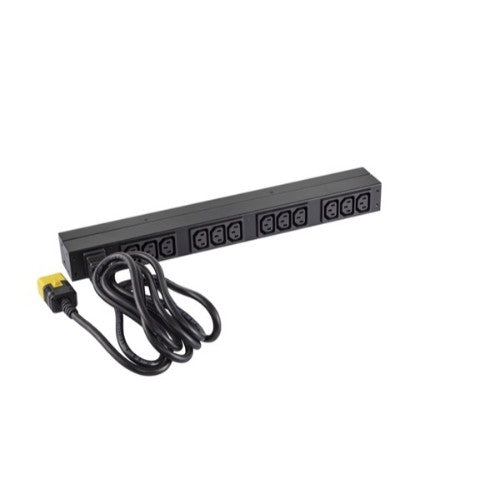

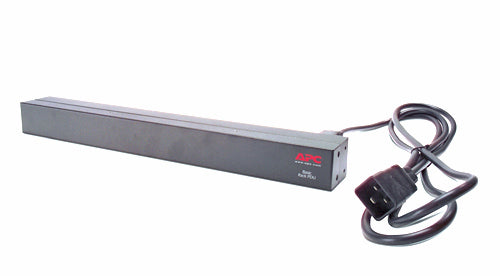

NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord
Description
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Basic |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE |
| Rack capacity | 0U/1U |
| Ports & interfaces | |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Output connections | (12) IEC 320 C13 |
| Input connection type | IEC-320 C20 |
| Features | |
| Cable length | 2.5 m |
| Certification | cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE |
| Ergonomics | |
| Cable length | 2.5 m |
| Power | |
| Maximum power | 3680 W |
| Maximum input current per phase | 16 A |
| Load capacity | 3680 VA |
| Certificates | |
| Certification | cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 2.05 kg |
| Width | 447 mm |
| Depth | 57.2 mm |
| Height | 44.5 mm |
| Package width | 464 mm |
| Package depth | 229 mm |
| Package height | 70 mm |
| Package weight | 3.64 kg |
| Packaging data | |
| Package width | 464 mm |
| Package depth | 229 mm |
| Package height | 70 mm |
| Package weight | 3.64 kg |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 55.19 |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 55.19 |
