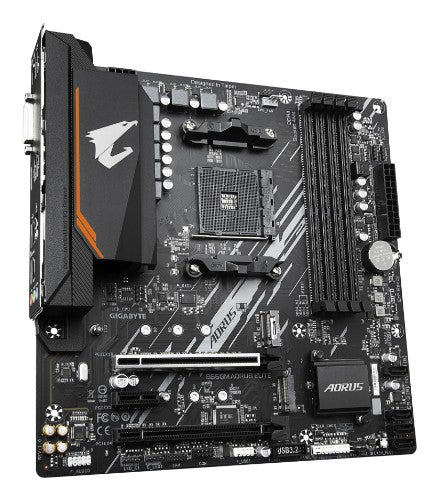

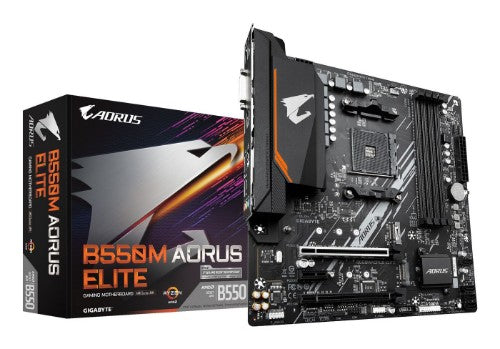

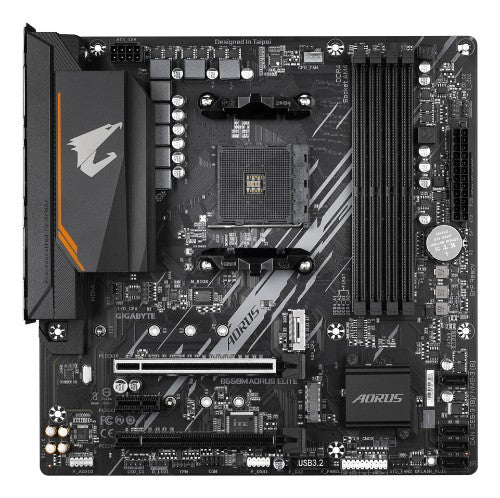

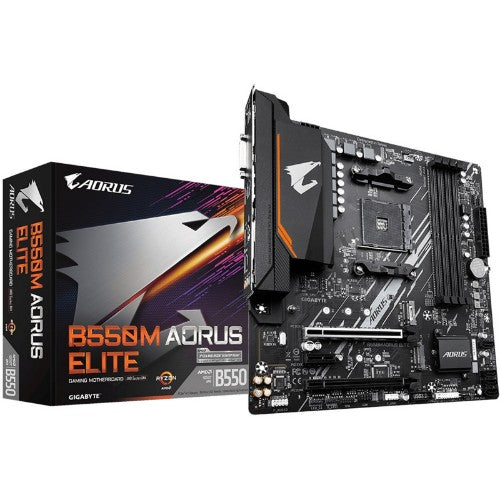

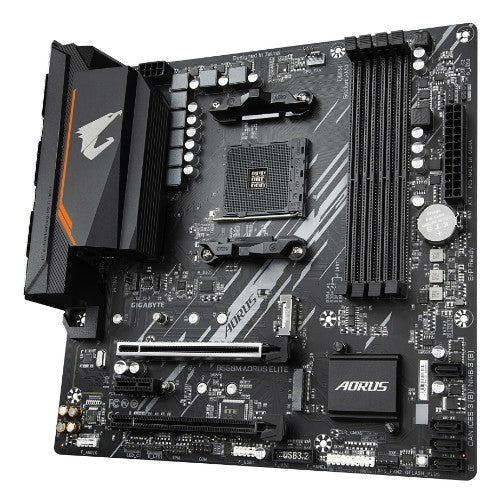

GIGABYTE B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Key Features

• Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra Durable™ PCIe 4.0 Ready x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
• Realtek GbE LAN with Bandwidth Management
• Rear HDMI & DVI Support
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Anti-Sulfur Resistors Design

Reasons To Buy

RGB Fusion 2.0 Software

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Q-Flash Plus

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	2
Number of RGB LED pin headers	5
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Supported processor sockets	Socket AM4
Serial port headers	1
PC health monitoring	Fan, Temperature, Voltage
Parallel processing technology support	Not supported
HDMI version	2.1
Cooling type	Passive
Motherboard form factor	micro ATX
Component for	PC
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
RAID levels	0, 1, 10
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets	Socket AM4
Maximum number of SMP processors	1
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	4733 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	32 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	6
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0

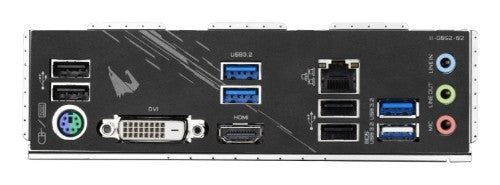

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Harmonized System (HS) code	84733020
Product colour	Brown
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	3.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Packaging data
Package width	265 mm
Package depth	265 mm
Package height	65 mm
Package weight	1.27 kg
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Harmonized System (HS) code	84733020
Weight & dimensions
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	65 mm
Package weight	1.27 kg
Width	244 mm
Depth	244 mm
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Other features
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	65 mm
Package weight	1.27 kg
