Description
3 x 120mm, 650-1750 RPM, 120m³/h, 30 dBA, 2 mmH₂O, PWM, White

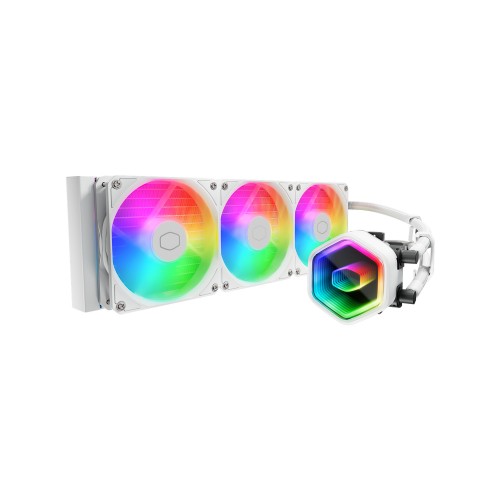

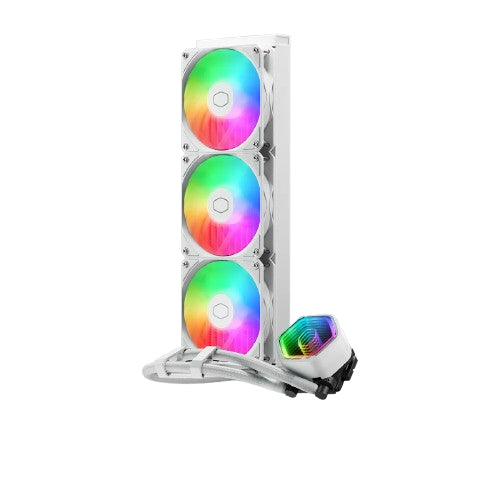

Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned MasterLiquid Core II Series. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid Core II Series.
Innovative Design
An infinity mirror pump cover gives the pump a stellar aesthetics
Dual Chamber Pump
Upgraded design resulting in a compact cooler with superior performance
Optimum Tubing Length
400 mm long tubing enables effortless mounting of the cooler in any orientation
Revamped fans
The brand-new fan blades and revamped aesthetics deliver outstanding performance and a fresh look
Daisy chain connection
Simplified fan connection for easy cable management
Longer tubes for easy placement configuration
UPDATED CPU COMPATIBILITY
The Core II is compatible with all of the latest AMD and Intel CPUs
SUPPORT LGA 1851 RL-ILM SOCKET DESIGN
Key Features
- Innovative design
- Dual chamber pump
- Optimum tubing length
- Revamped fans
- Updated CPU compatibility
- Easy installation
- Included Cryo-Fuze thermal paste
Description
MasterLiquid Core II SeriesBuilding upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned MasterLiquid Core II Series. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid Core II Series.
Innovative Design
An infinity mirror pump cover gives the pump a stellar aesthetics
Dual Chamber Pump
Upgraded design resulting in a compact cooler with superior performance
Optimum Tubing Length
400 mm long tubing enables effortless mounting of the cooler in any orientation
Revamped fans
The brand-new fan blades and revamped aesthetics deliver outstanding performance and a fresh look
Daisy chain connection
Simplified fan connection for easy cable management
Longer tubes for easy placement configuration
UPDATED CPU COMPATIBILITY
The Core II is compatible with all of the latest AMD and Intel CPUs
SUPPORT LGA 1851 RL-ILM SOCKET DESIGN
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 650 RPM |
| Rotational speed (max) | 1750 RPM |
| Bearing type | Sleeve bearing |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum air pressure | 2 mmH2O |
| Airflow | 120 m³/h |
| Number of fans | 3 fan(s) |
| Quantity per pack | 1 pc(s) |
| Pump connector | 3-pin + 4-pin |
| Fan noise level (max) | 30 dB |
| Pump noise level | 25 dB |
| Pump motor speed | 3100 RPM |
| Pump's mean time to failure (MTTF) | 50000 h |
| Fan's mean time to failure (MTTF) | 160000 h |
| Design | |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Product colour | White |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| Technical details | |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum air pressure | 2 mmH2O |
| Airflow | 120 m³/h |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Ports & interfaces | |
| Pump connector | 3-pin + 4-pin |
| Power | |
| Safety current | 0.45 Ah |
| Rated voltage | 12 V |
| Rated current | 0.23 A |
| Fan power consumption | 2.76 W |
| Pump power consumption | 3.6 W |
| Pump voltage | 12 V |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 39.4 cm |
| Radiator depth | 11.9 cm |
| Radiator height | 2.72 cm |
| Pump width | 8.3 cm |
| Pump depth | 7.62 cm |
| Pump height | 5.23 cm |
| Indication | |
| Illumination colour | Multi |
| Other features | |
| Safety current | 0.45 Ah |
| Pump connector | 3-pin + 4-pin |
