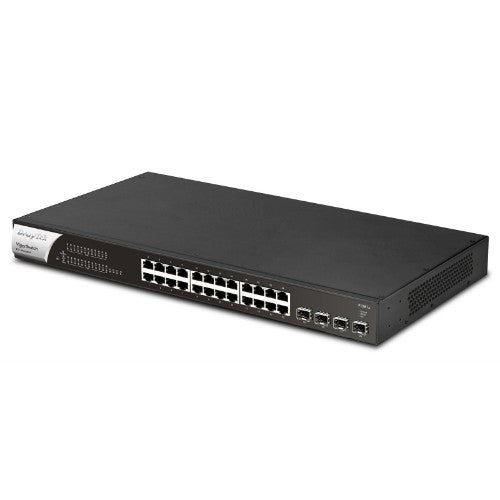

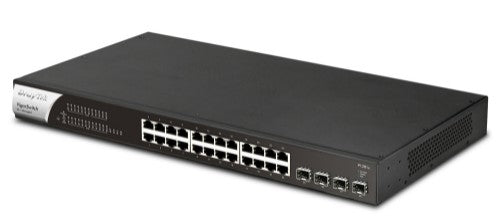

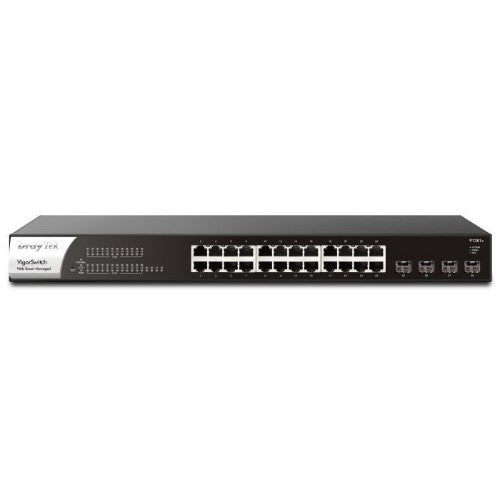

DrayTek VigorSwitch P1281x PoE+ Smart Switch
Designed for centralised management, the VigorSwitch P1281x can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Key Features
- 24 RJ-45 Ethernet PoE+ Ports – 10/100/1000Mbps
- 4 x SFP+ 10GbE Ports for Uplink / Fibre
- PoE (Power-over-Ethernet) for IP phones, wireless access points, IP cameras etc
- 140-watt Power-over-Ethernet budget
- Cloud Managed with VigorACS
- 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
- ONVIF IP Camera Surveillance Management with PoE Device Check
- Access Control List (ACL) for port & traffic level security
- Port Mirroring & Link Aggregation
- IGMP Snooping & Querying
- IPv4 and IPv6 Support with IP Conflict Prevention
- Centrally managed or standalone operation
Description
VigorSwitch P1281x is a smart switch with 24 x GbE PoE+ ports (total of 140W output) and 4 additional independent SFP+ 10Gbps interfaces. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.Designed for centralised management, the VigorSwitch P1281x can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Specifications
| Management features | |
|---|---|
| Traffic classification | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| VLAN support | Yes |
| Protocols | |
| IP Source Guard (IPSG) | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Power | |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 140 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Other features | |
| Warranty period | 2 year(s) |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 216 mm |
| Height | 44 mm |
| Weight | 3.25 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45), Power |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Warranty period | 2 year(s) |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45), Power |
