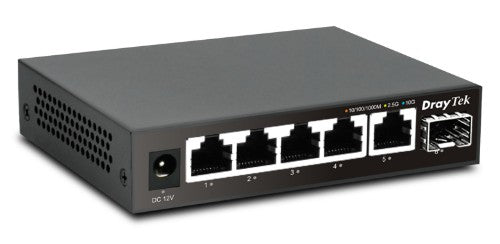

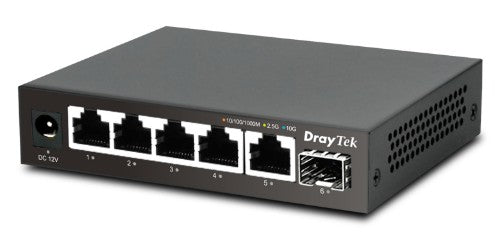

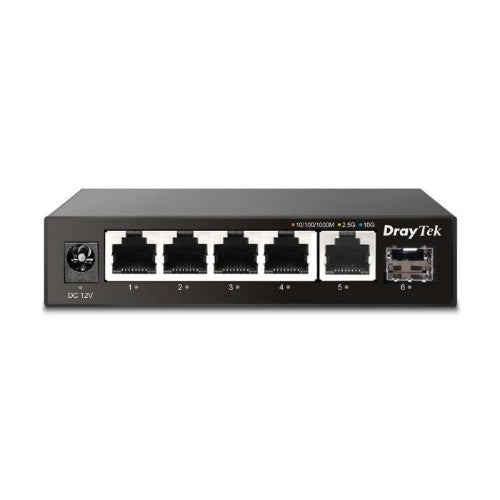

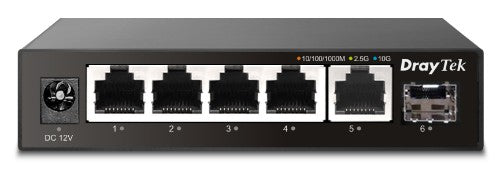

DrayTek VSQ60X-K network switch Unmanaged L2 2.5G Ethernet (100/1000/2500) Black

DrayTek VigorSwitch Q60x Multi-gig High Performance Unmanaged Switch

Key Features

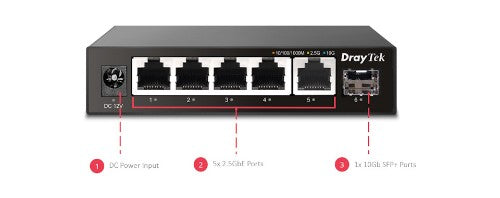

• 5 x RJ-45 2.5 Gigabit Ethernet Ports
• 1 x SFP+ 10GbE Port for Uplink / Fibre
• Compact form factor
• Wall Mountable
• Fanless (Silent) Operation
• Power consumption

Description

VigorSwitch Q60x is a small, high-performance unmanaged 2.5 Gigabit Ethernet switch with 5 x 2.5-Gigabit RJ-45 LAN ports and 1 x 10-Gigabit SFP+ port. Use the faster 2.5 GbE ports for high-speed connections between switches, servers, and wireless access points such as the VigorAP 805. The 10Gb SFP+ interface can be an ideal option for uplink purposes to connect to a router or another switch.
Our lightweight, low-power network switch is easy to deploy. This VLAN-aware device requires no configuration, offers fanless operation, and comes with a power supply.

Specifications

Management features
Switch type	Unmanaged
Web-based management	No
Switch layer	L2
Cloud-managed	No
Ports & interfaces
SFP+ module slots quantity	1
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
MAC address table	4000 entries
Switching capacity	45 Gbit/s
Jumbo frames support	Yes
Forwarding rate	33.5 Mpps
Design
Product colour	Black
Stackable	No
LED indicators	Link, Power
Housing material	Metal
Rack mounting	No
Performance
Fanless	Yes
Stackable	No
Power
Power consumption (max)	4.85 W
Power supply included	Yes
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Warranty period	2 year(s)
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	114 mm
Depth	90 mm
Height	25 mm
Weight	250 g
Packaging content
Rack mount kit	No
Quick start guide	Yes
Cables included	AC
Packaging data
Package type	Box
Package width	175 mm
Package depth	120 mm
Package height	83 mm
Package weight	407 g
Rack mount kit	No
Quick start guide	Yes
Cables included	AC
Technical details
Product colour	Black
Stackable	No
Housing material	Metal
Rack mounting	No
Warranty period	2 year(s)
Indication
LED indicators	Link, Power
